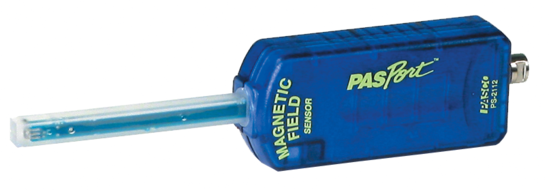

PASPORT Magnetic Field Sensor

Product Code: PS-2112

Description

The Magnetic Field Sensor provides magnetic field measurement in a compact package. The sensor at the tip of the probe measures magnetic field strength along the axis of the probe.


Features

  • Measures magnetic field along axis of probe
  • Molded plastic protects the sensing element for enhanced durability
  • Displays in gauss and millitesla

Applications

  • Study the field strength of bar magnets and electromagnets
  • Understand the field strength of a solenoid
  • Measure the field strength of a Helmholtz coil

Product Specifications

Range ±1000 gauss
Resolution 0.1 gauss (0.01% full-scale)
Accuracy ±3 gauss or 5% of reading, whichever is greater at 25°C (after four minute warm-up)
Maximum Sample Rate 20 Hz
Repeatability 0.05%
